Vacuum Pads (Vacuum Suction Cups)
Compact Vacuum Pad (Vacuum Suction Cup) ZP3
![]() | ・Overall length shortened ・Pad form: Flat type, Flat type with groove, Bellows type, Bellows type with ribs ・Mounting: Male thread, Female thread ・Vacuum inlet direction: Vertical, Lateral ・Vacuum inlet: Male thread, Female thread, One-touch fitting, Barb fitting ・Buffer: Without, With [Buffer stroke [mm]: 3, 6, 10, 15, 20] |
Series | Pad form | Pad diameter(mm) |
---|---|---|
ZP3 | Flat type | φ1.5,φ2,φ3.5 |
ZP3 | Flat type with groove | φ4,φ6,φ8,φ10,φ13,φ16 |
ZP3 | Bellows type | φ4,φ6,φ8 |
ZP3 | Bellows type with ribs | φ10,φ13,φ16 |

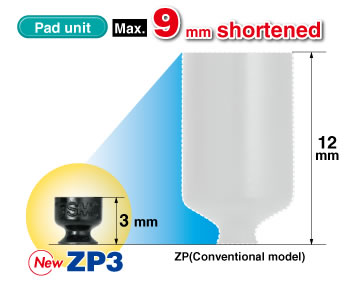

■Overall length is shortened.In the case of Flat type (Pad diameter: ø2)
Pad unit:Max. 9 mm shortened

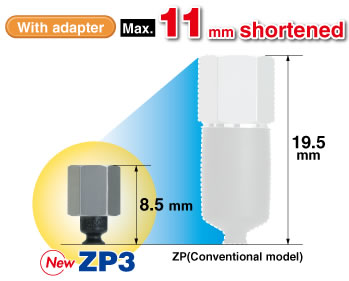

With adapter:Max. 11 mm shortened

■Space-saving

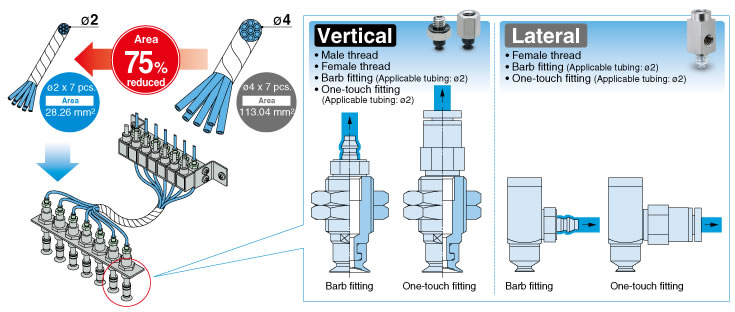

ø2 piping reduces working space!

■Variations

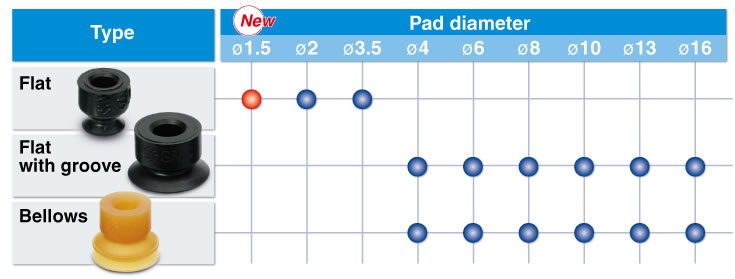

Pad diameter ø1.5 added!

■Excellent functions
Easy to remove
Construction to prevent pad from coming off Pad Easy to remove diameter from ø1.5
Easier identification

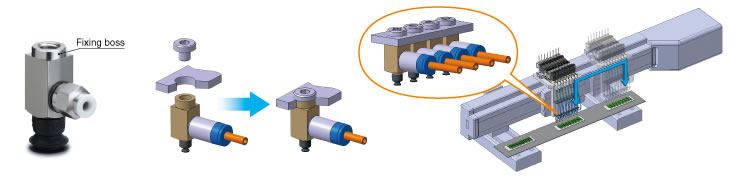

Fixing boss allows easy mounting and repeatability.

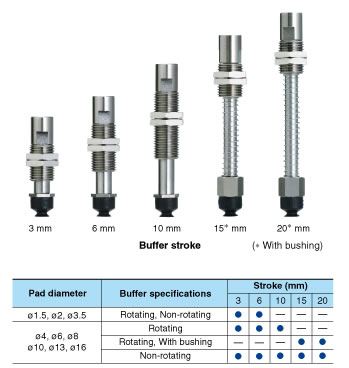

■Compact buffer body

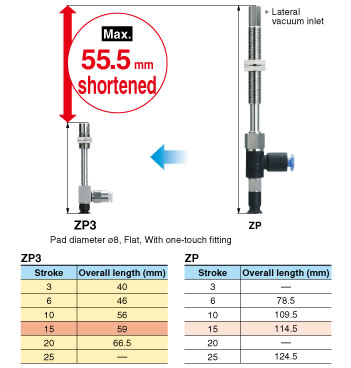

Overall length is shortened.

Short stroke type: 3 mm added

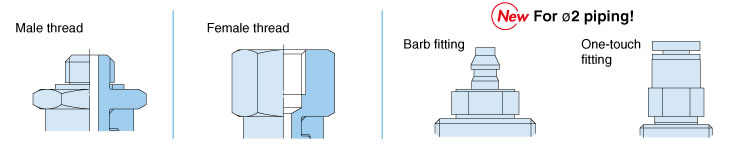

■Wide selection of piping
